CPC Pier Adapter Kit

Looking to permanently mount your CPC telescope? You'll want this adapter kit to easily attach the CPC fork mount to a permanent pier.

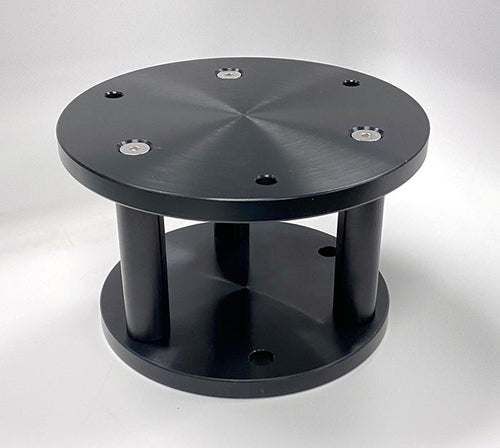

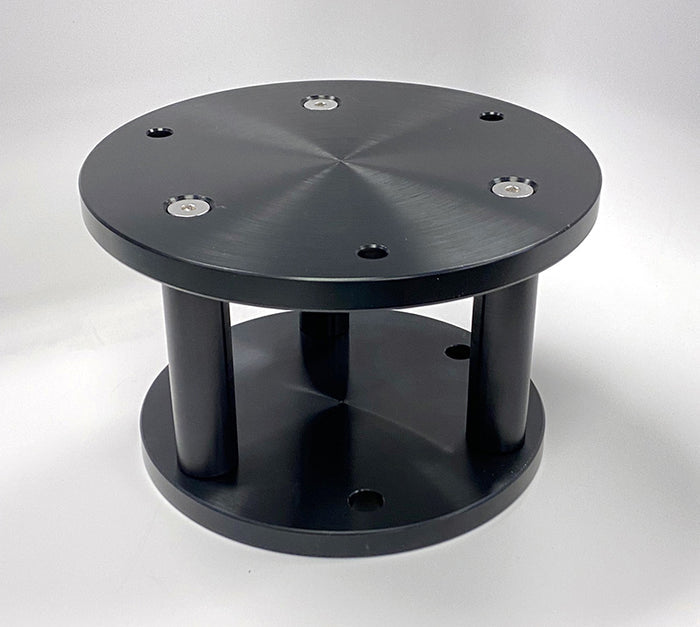

The top plate of the adapter kit has holes for 3/8" bolts to match the hole pattern in the bottom of the CPC base. Three stand-off posts keep the top plate clear of the pier itself, allowing easy mounting of the bolts into the bottom of the CPC The posts are each 1" in diameter and provide 4" of clearance.

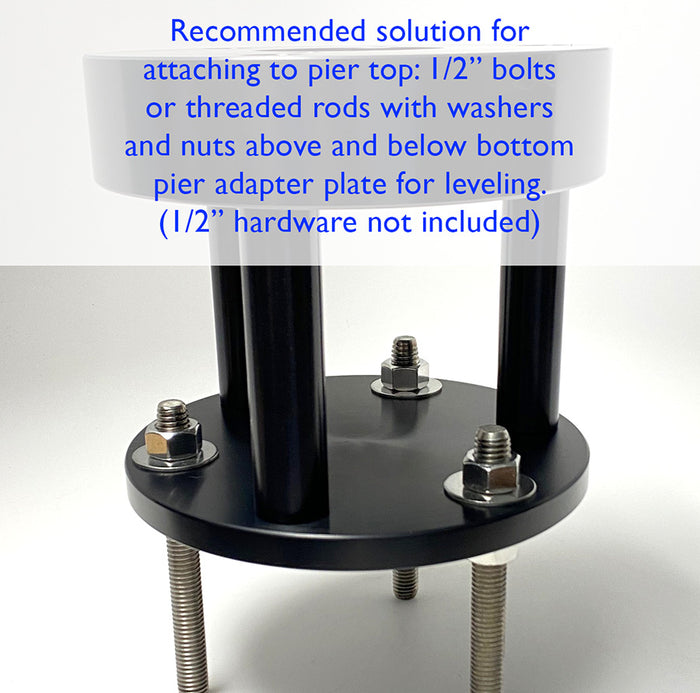

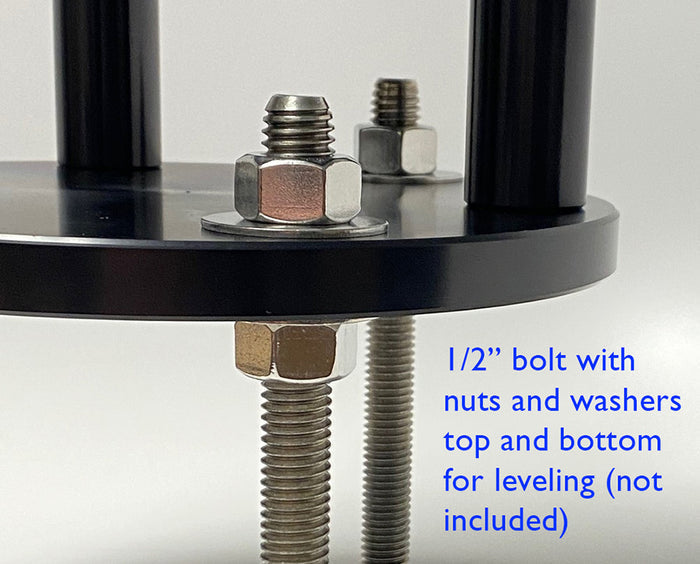

The bottom plate is designed to attach to a pier with three bolts. Three 1/2" bolt holes are provided in the bottom plate, between the stand-off posts.

Specifications

• 8" diameter top plate

• 7" diameter bottom plate
• 5" total height
• 1/2" thick top and bottom plates
• Anodized aluminum construction
• Stainless steel hardware
• Made in USA

Base Plate Dimensions for Mounting
